Example of 'Creating a Master Cam for Berco-type Master Cam Copying Machines (back)

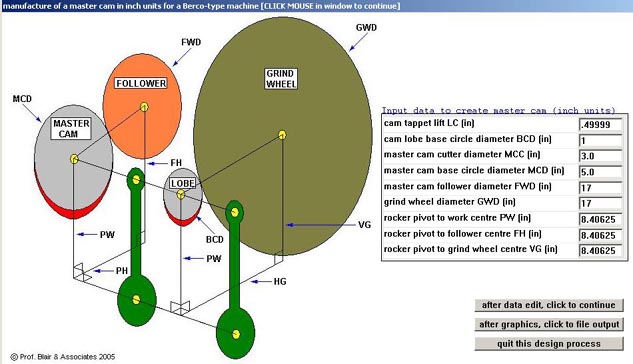

Input
data page for the geometry of the Berco-type machine and the manufacture
of a cam lobe using a master cam

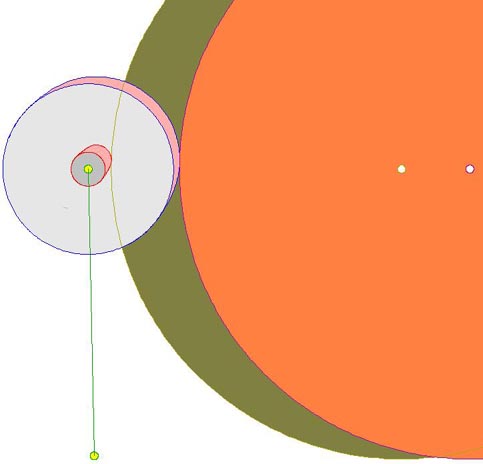

Snapshot
from the movie of the motion of the cam and the grind wheel and the master
cam and its follower wheel

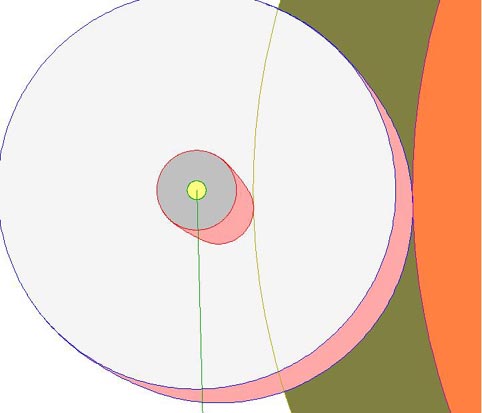

Magnified
movie snapshot of cam and master cam contact with the grind wheel and
the follower wheel, respectively

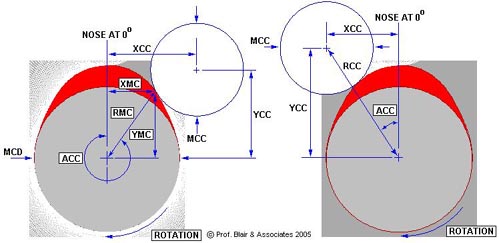

The
explanation graphic from the output data page for the master cam profile
including its manufacture with a specified cutter

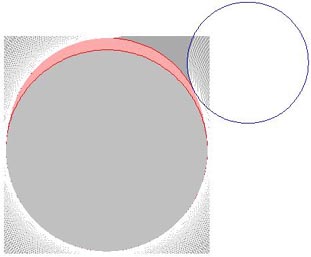

A
snapshot of the milling of the master cam using the computed motion coordinates
of the cutter specified as diameter Mcc.
©Prof Blair & Associates
