2-valve classic wedge head input information screen (back)

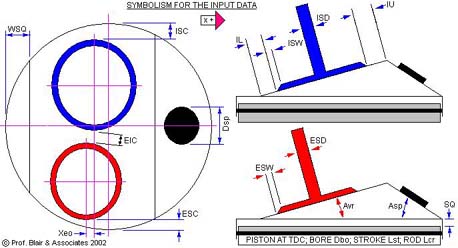

Definition of some of the input variables used in the design of the wedge cylinder head
