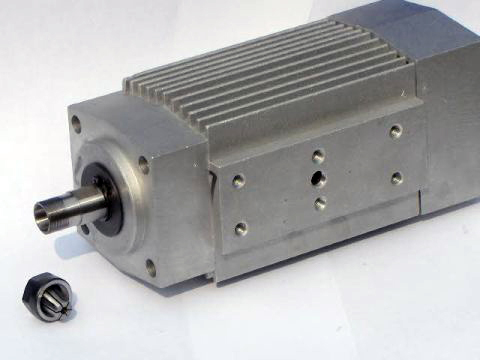

Picture of the HF spindle HSSL1-700
Air cooled highspeed 3 phase motors ( C is with ceramic bearing ).
Type |
Power |
Speed |
Voltage |
Current |
Sizes |
Weight |
Data |
Price |
Price |
Max |
Sheet |
Excl VAT |
Incl VAT |
||||||
Watt |
RPM |
Volt |
Ampere |
mM |
kg |
EUR |
EUR |
||
HSSL1-100 |
100 |
60.000 |
36 |
1,5 |
48(dia)x120 |
1,5 |
219,00 |
260,61 |
|
HSSL1-100C |
100 |
60.000 |
36 |
1,5 |
48(dia)x120 |
1,5 |
249,00 |
296,31 |
|
HSSL1-700 |
700 |
20.000 |
230 |
2,5 |
205x72x78 |
2,8 |
229,00 |
272,51 |
|
HSSL1-700C |
700 |
20.000 |
230 |
2,5 |
205x72x78 |
2,8 |
259,00 |
308,21 |
|
HSSL1-7500 |
7500 |
18.000 |
380 |
15 |
110x130x270 |
13 |
1199,95 |
1427,94 |
The 100 W HF-motors have standard a 1/8 inch chuck..
These high speed motors either need a frequency converter or a driver to funcion.
Watercooled highspeed motors
Type |
Power |
Speed |
Voltage |
Current |
Sizes |
Weight |
Data |
Price |
Price |
Max |
Sheet |
Excl VAT |
Incl VAT |
||||||
Watt |
RPM |
Volt |
Ampere |
mM |
kg |
EUR |
EUR |
||
HSSL1-300 |
300 |
60.000 |
75 |
5 |
48(dia)x130 |
1,7 |
239,00 |
284,41 |
|
HSSL1-800 |
800 |
24.000 |
230 |
5,5 |
65(dia)x160 |
3,5 |
249,00 |
296,31 |
|
HSSL1-1200-60K |
1200 |
60.000 |
220 |
4.5 |
62x202 |
4,1 |
478,40 |
569,30 |
|
HSSL1-1200 |
1200 |
24.000 |
230 |
5 |
80(dia)x170 |
279,00 |
332,01 |
||
HSSL1-1500 |
1500 |
24.000 |
230 |
5 |
65(dia)x210 |
299,50 |
356,41 |
||
HSSL1-2200 |
2200 |
24.000 |
230 |
8 |
80(dia)x215 |
5,5 |
329,90 |
392,58 |
|
HSSL1-3000 |
3000 |
24.000 |
380 |
11 |
100(dia)x250 |
374,95 |
446,19 |
These high speed spindles need either a frequencyconverter or a driver and watercooling to work.
We now have a mounting house for all CNC HF spindles, except the 3 Kw type, click here.
