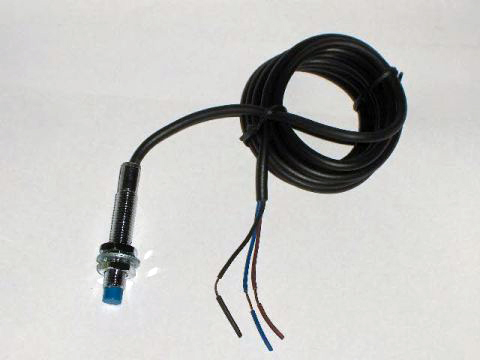

Lengte 52 mm ( zonder kabel ) dia 8 mm, schakelt op 2 mm. Met 2 meter kabel. ( 3 meter 1 euro extra ) Zwart = NPN uitgang. Blauw = GND. Bruin = Vdc ( 6-35 V ). Deze uitvoering is geschikt om aan te sluiten aan een PLC.
Hysteresis is ongeveer 0,1 mm. Herhaal-nauwkeurigheid is beter dan 0,1 mm ( bij metingen 0,02 mm ).
InSw1-2 : Prijs 5,99 euro excl BTW 7,13 euro inc. BTW ( kabel lengte 2 meter )
InSw1-3 : Prijs 6,99 euro excl BTW 8,32 euro inc. BTW ( kabel lengte 3 meter )
We hebben nu ook een type dat geschikt is voor een spanning tussen de 4 en 6 volt, dus ideaal voor een voeding van 5Vdc. Alle gegevens zijn hetzelfde als die van de InSw1-2, alleen is de lengte 48 mm.
Hysteresis is ongeveer 0,2 mm. Herhaal-nauwkeurigheid is beter dan 0,1 mm ( bij metingen 0,01 mm ).
InSw2-2 : Prijs 5,99 euro excl BTW 7,13 euro inc. BTW ( kabel lengte 2 meter )
InSw2-5 : Prijs 7,99 euro excl BTW 9,51 euro inc. BTW ( kabel lengte 5 meter )

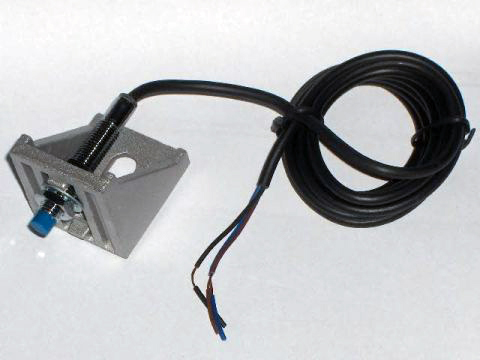

Voor de montage op een cnc machine ( als b.v. een eindschakelaar ) hebben we een simpele montage
CNC inductive schakelaar montage 1,89 euro ( excl BTW ) 2,25 euro ( inc BTW )
Type | Stroom | Spanning | Prijs ( excl BTW ) | Prijs ( incl BTW ) |
---|---|---|---|---|
SSR-25 |
25 A |
24-380 Vac |
5,49 euro |
6,53 euro |
SSR-50 |
50 A |
24-380 Vac |
9,89 euro |
11,77 euro |

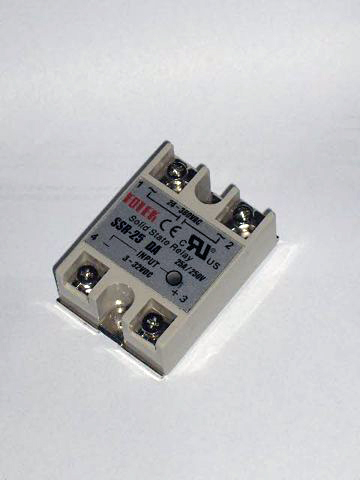

Solid state relais voor cnc machines. Stuurspanning mag tussen 3 en 32 Vdc liggen. Met indicatie LED.
Type |
Knop dia |
Gat dia |
Prijs Ex |
Prijs In |
mm |
mm |
EUR |
EUR |
|

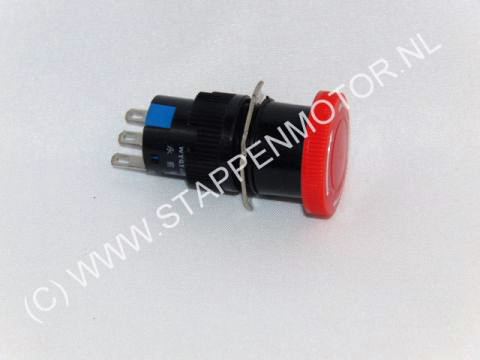

EMSW1-sm |
23 |
15 |
3,95 |
4,70 |

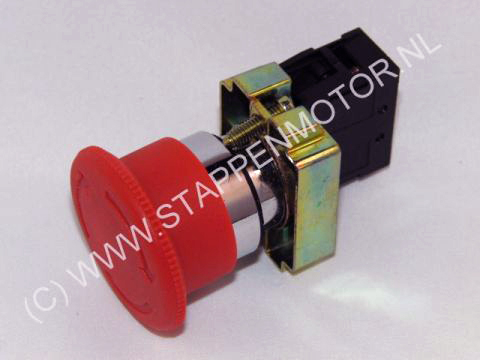

EMSW1-lg |
40 |
22 |
4,95 |
5,89 |

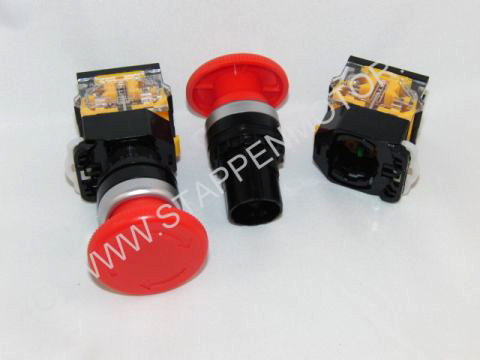

EMSW1-HQ |
41 |
22 |
7,95 |
9,46 |
EMSW1-key |
40 |
23 |
11,95 |
14,22 |

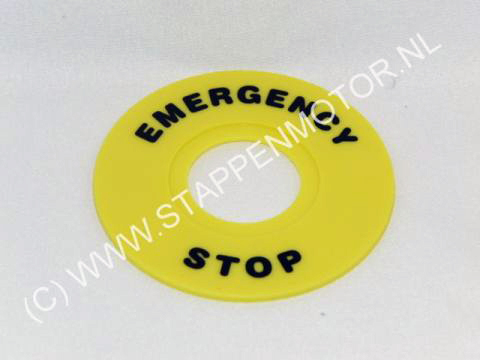

EMSIGN-40 |
40 |
23 |
0,95 |
1,13 |
EMSIGN-60 |
60 |
23 |
0,95 |
1,13 |
EMSIGN-90 |
90 |
23 |
0,95 |
1,13 |

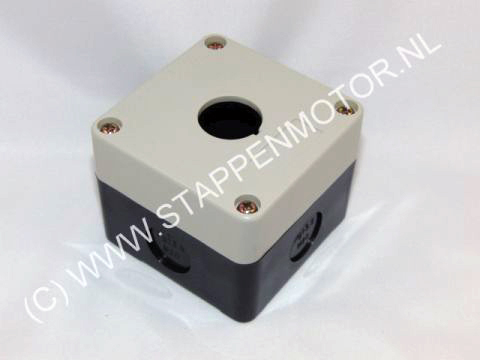

EMBOX1 |
23 |
4,95 |
5,89 |

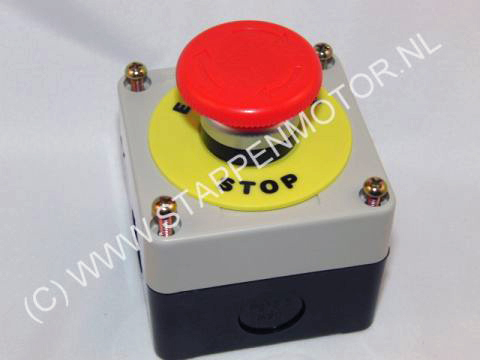

Voorbeeld van de box ( EMBOX1) met noodschakelaar ( EMSW1-HQ ) en 60 mm schild ( EMSIGN-60 )

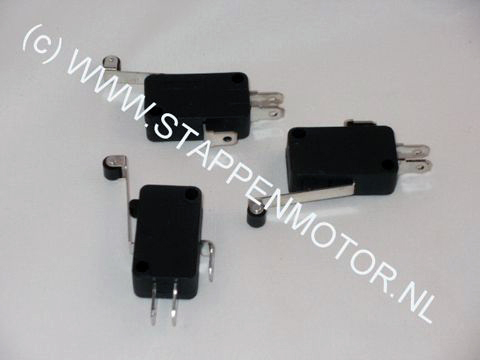

Microswitch 0,99 euro excl BTW , 1,18 euro incl BTW

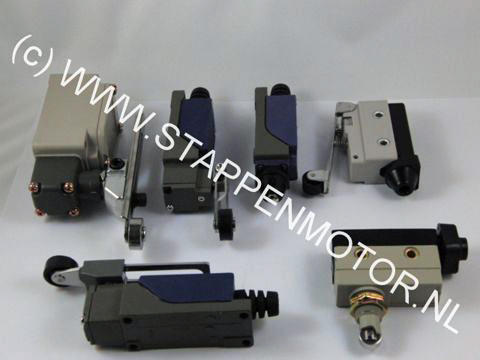

We hebben nu ook zware industriele eindschakelaars.
