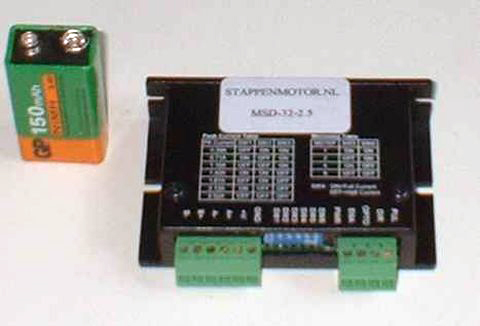

MSD-32-2.5

• Bipolare driver. Motors with 4,6, or 8 wires usable.
• Powersupply 12Vdc -32 Vdc.Can be supplyed with a powersupply from the PC.
• 200,400,800,1600 microsteps per revolution ( with a 1.8 degree steppermotor )
• 0.2 A - 2.5 A peak amps output
• Automatic current reduction to 70%
• Overheat protection
• Short circuit protection
• Solid casting
• Step frequentie > 100 Khz.
• Size 86 * 55 * 20 mm.
