Front Wheel Assemby
Rim: Akront Flange Alloy WM2 X 18" 36 Hole.
Tire: Avon 90/90 H18 AM 20 ROADRUNNER or Avon 90/90 ROADRUNNER UNIVERSAL.
Spokes: Use 9 gauge stainless steel spokes 150mm long with a 90 degree bend. The nipples are nickle plated brass.
Hub: Grimeca 180mm double sided single leading shoe. This was the standard brake on wide case singles from 1971.

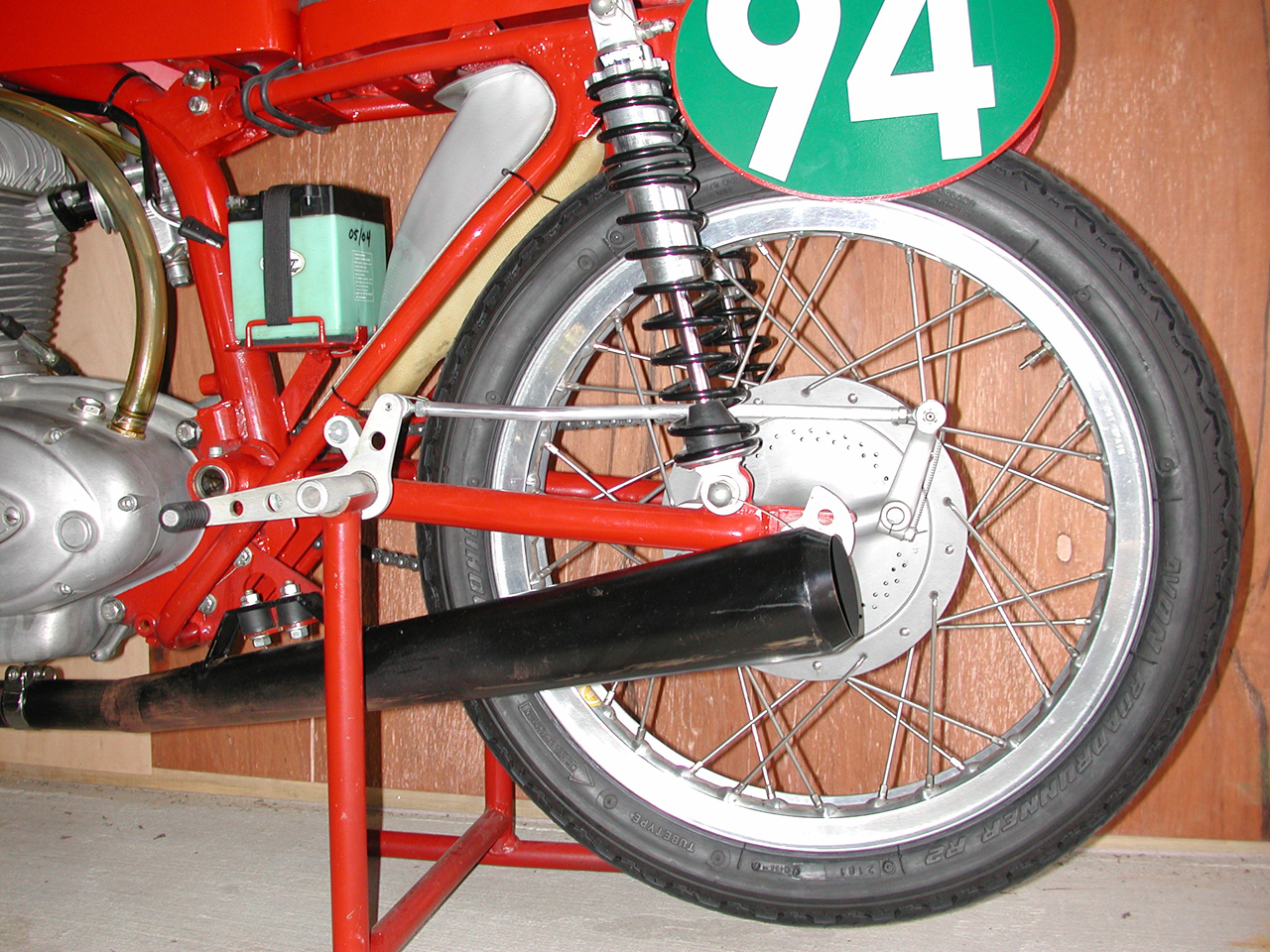

Rear Wheel assembly
Rim: Akront Flange Alloy WM2 X 18" 36 Hole.
Tire: Avon 110/80 H18 AM 22 ROADRUNNER or Avon 90/90 ROADRUNNER UNIVERSAL.
Spokes: Use 9 gauge stainless steel spokes 155mm long with a 90 degree bend. The nipples are nickle plated brass.
Hub: Use the stock Ducati rear hub and brake.
|
Rear Wheel Bearings
|
Qty
|
Bearing Number
|
Seal
|
Special
|
|
Wheel
|
2
|
6202
|
2RS
|
Shields
|
|
Cush Drive
|
1
|
6004
|
2RS
|
Shields
|
Rear Brake Springs
To replace the springs in a stock Ducati rear brake, buy a brake rebuild kit for a 1972 Datsun B210. Canadian Tire part number 13-7906-4.
Final Drive
Use 428 chain and have one chain for each size of rear sprocket. Run a 17 tooth counter shaft sprocket and use 42, 43, 44, & 45 tooth rear sprockets. Check the clearance between the chain and the inside of the shifter case for clearance. You may have to grind away the boss on the casting behind the shifter shaft.
You can get aluminum rear sprockets to fit the stock Ducati hub from Sprocket Specialties at 916-533-0802. The sprockets are stamped with "188 Z". The inner diameter of the rear sprocket is 110mm. The bolt hole circle is 125mm with six M7 mounting holes.
|
|

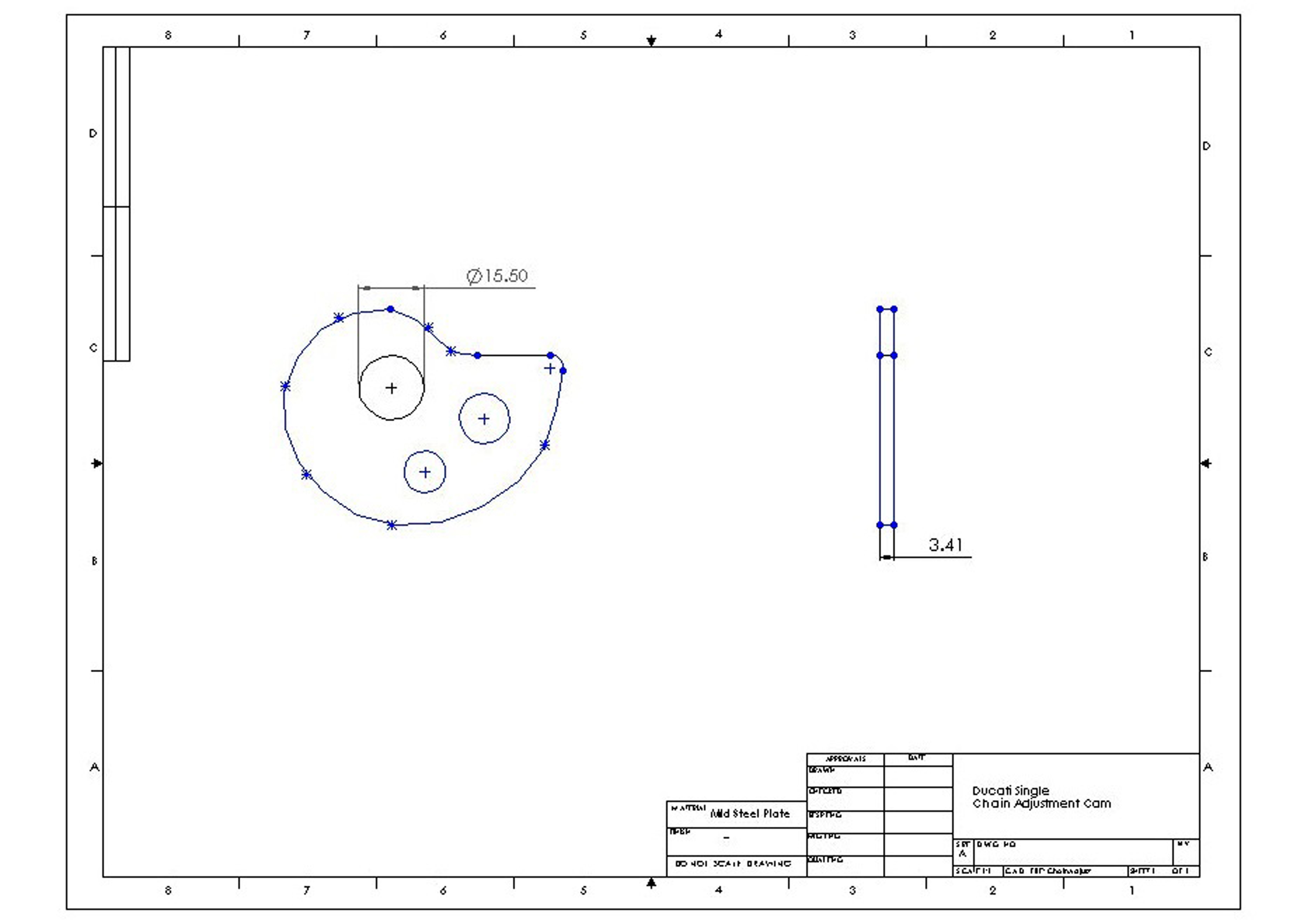

Chain Adjuster
|
|
