Intake Manifold

Mega Phone taper dimensions are 1 (38.1mm) to 3 (82.55 mm)diameter. Overall length should be from 26 (660.4 mm)to 32 (812.8 mm) depending on tuning.

Intake track should be 32 mm (.8 of the valve diameter).

Intake track overall length is 10 (260.35 mm) from edge of intake valve to end of carburetor bell mouth.



Spigot

Flange

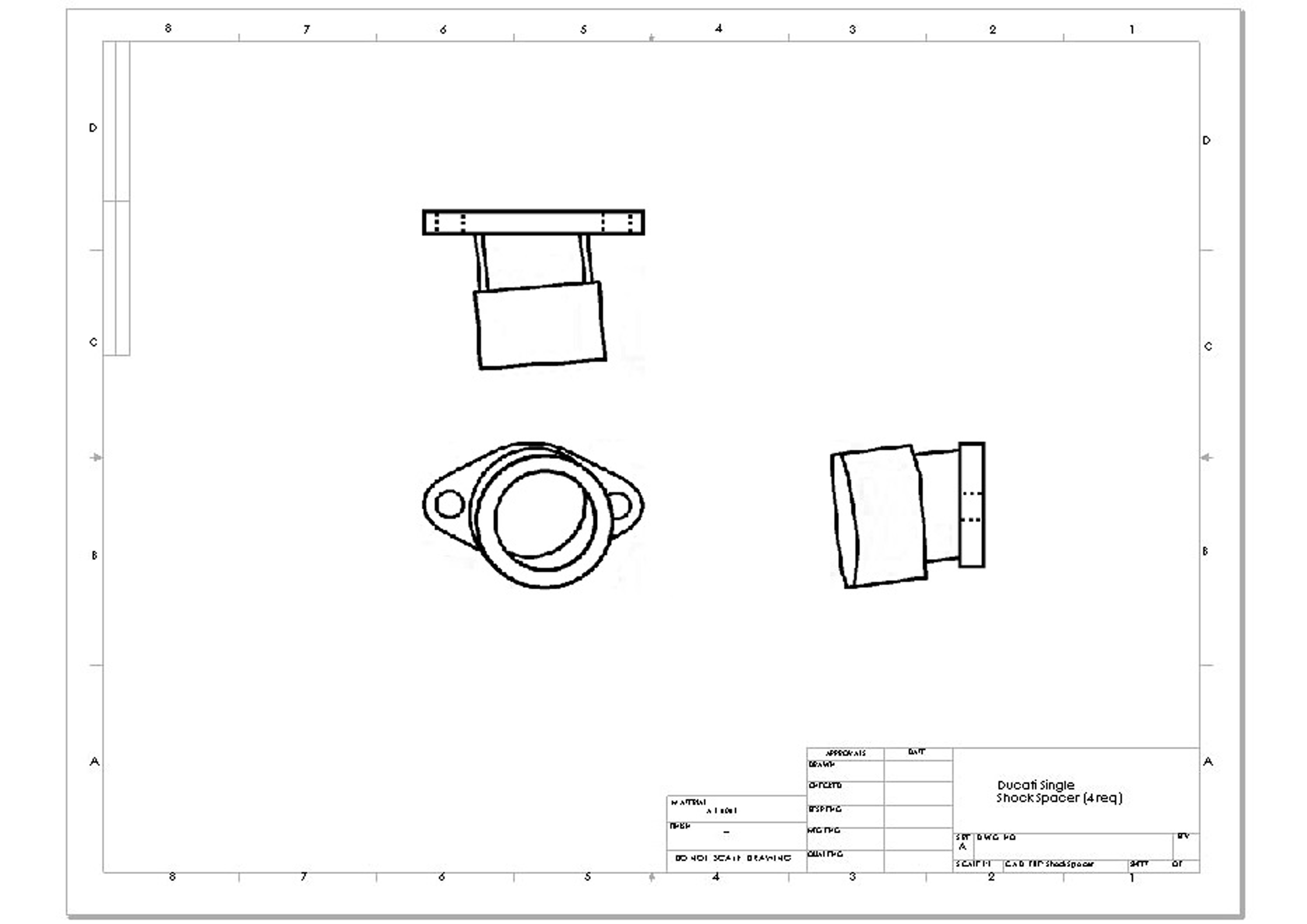

Manifold complete
